Panasonic GH4 aerial test 1080p 50fps cine D does it work out well?
In the past month I had the Chance to play around a few times with a GH4 and since yesterday (May 8th) I’ve got my own production unit to play around with.
So it’s time to make a first and simple conclusion about GH4 filming. This time with a Focus on Aerial usage on a drone like the DJI S1000.
But before i talk about 1080p GH4 Performance I want to spend a few quick words on UHD with 25fps (3840 x 2160 ).
UHD 25fps works (did not test 4k 24fps or UHD with 30fps yet), but the Image will suffer, due of slight rolling shutter causing a bit of jello. Maybee a future firmware upgrade will be able to help a bit in UHD.
GH4 1080p 50 fps looks pretty great.
With manual settings and sharpness turned down a bit, it probably would look even better.
But for this test I wanted to give the GH4 a out of the box, full auto run, to see what the result would be.

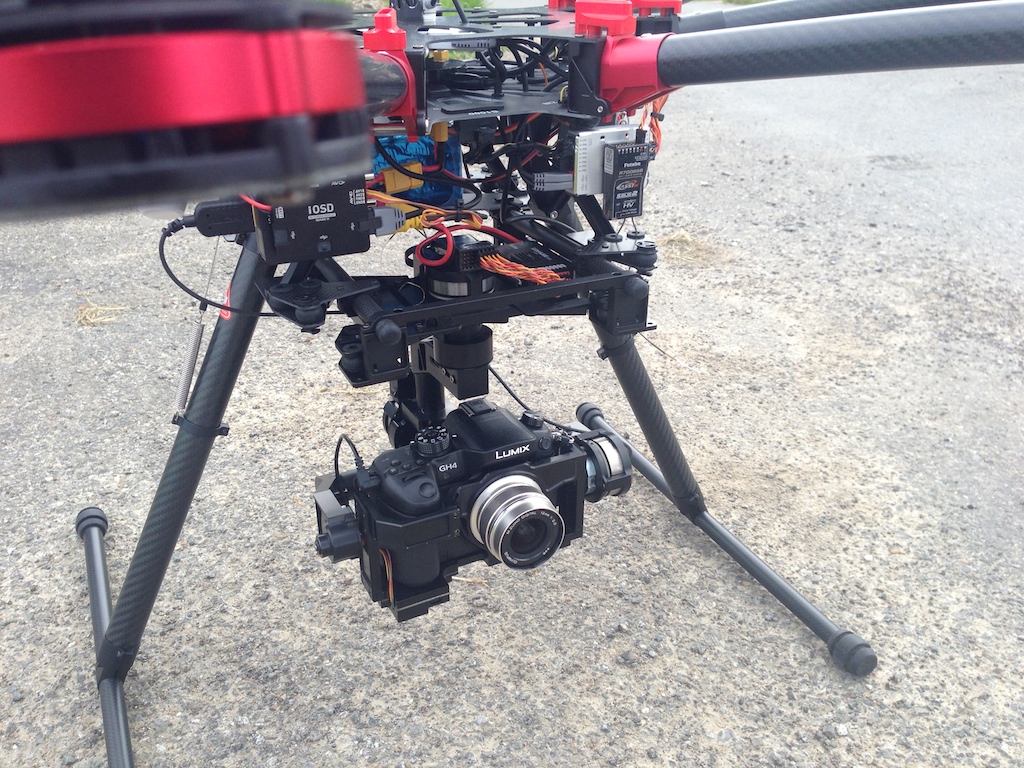

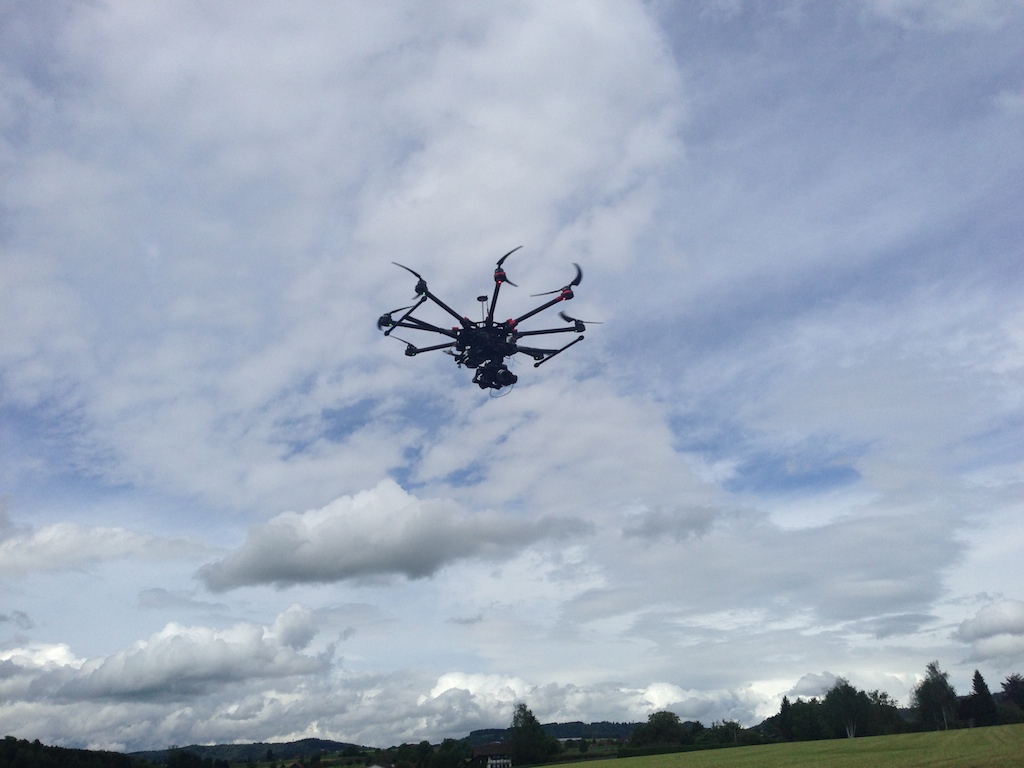

Yesterday I’ve finished building up a DJI S1000 drone and have done a few first flights in UHD.
So as the weather was still flyable today, I decided to get more airtime, but this time with a 1080p 50pfs Setting, to see if there is less of an rolling shutter issue.
As it was very windy today, I could’nt really fly as long as I would have liked to.
The wind was so strong, that my S1000 almost flipped twice, when doing harsher movements.
Aerial test with different Settings will have to wait for better weather.
But I got a few sequences I can share with you.
Panasonic GH4 Cine D 1080p 50fps aerial test from Riot Media on Vimeo.
Update May 10th:
I realized today I was shooting the clip above in 100mbit mode. So I did some more testflights today with 1080p, 50fps, 200mbit all-i.
The Image Looks even better, but with still no rolling shutter issue like I found in 4k mode.
I will upload some samples in the next couple of days.
Here’s a sample of 1080p, 50fps, 200mb/s ALL-Intra
Panasonic GH4 Cine D 1080p 50fps ALL-Intra aerial test from Riot Media on Vimeo.
Shutter update May 10th:
Here’s a sample of the mentioned 4k shutter issue I’m getting with the S1000 and a DJI Zenmuse Z15 / GH3.
This Jello does not appear, or much less, in 1080p modes.
Could be a wrong set shutter speed, as the cam was in auto mode. Will test with a correct shutter speed again.
Shutter update May 13th:
The problems I was having were pretty logical and my dumb fault :/
I set the shutter to auto which was not matching the frame rate. Logical, isn’t it.
So I used todays lunchbreak to do a short test with correct, fixed shutter speeds.
The clip contains ungraded Panasonic GH4 footage with fixed shutter speeds with 1/50, 1/100 and 1/250
Looks much better now 🙂 LOL
Diese Website benutzt Cookies. Wenn du die Website weiter nutzt, gehen wir von deinem Einverständnis aus.
This website uses cookies. If you continue to use the website, we will assume your consent.
[…] Panasonic GH4 aerial test 1080p 50fps cine D […]
Hi Matthias,
ich habe auch die GH4 und den Zenmuse GH3!! Mich ärgert es extrem, da ich Panasonic vor RELEASE gefragt habe ob die GH4 auch die interne Converterfunktion wie die GH3 hat, so dass ich ein interlaced signal rausgeben kann und den internen Zenmuseconverter benutzen kann!! Sehr schade dass Panasonic da “gelogen” hat!!
Bei mir funktioniert der RemoteShutter auch nicht! Bei dir!? Wenn ja, was haste da noch eingestellt!?
Ich habe auch nen externen Konverter dran um zu fliegen…hast du nen Tip wie du das HDMI Kabel gut verlegt hast damit man die 2 Drehungen hinbekommt!??
Viele liebe Grüße aus Köln,
Daniel
Remote shutter funktioniert bei der finalen Version einwandfrei. Ich hatte lediglich beim Vorserienmodell ein Problem damit.
Very cool! What lens were you using?
OLYMPUS M.ZUIKO DIGITAL ED 12mm f2.0, the only officialy supported lens on the GH3 Z15.
Hi Matthias 🙂
Great site and great videos 🙂
I just bought my s1000 with GH3 Gimbal and 1 GH4 camera.
I ordered all parts from USA and some other parts from UK, and one friend of me fixed me the copter.
While fixing it, we realized that the GH4 has a micro HDMI port.
Could you please tell me how you connect the GH4 on the GH3 gimbal?
What cable or adapter are you using? Can you please provide me some more info, and also where I can buy it?
I have everything ready and I cant start filming because of that and I am kind of sad 🙁
And one last question? Do you have the DJI video downlink? Can you please tell me how did you set up everything to achieve so beautiful videos?
Thanks a lot and many regards from Greece 🙂
Emmanuel check my other blog post 😉 http://www.riot.ch/panasonic-lumix-gh4-dji-s1000-gh3-z15-gimbal/
Hey Emanuel
Great article
Which profile picture would you recommend us using in a day light?
gh4
Panasonic 12-35 lens + nd’s
Do you think incresing shutter spead will reduce rolling shutter apperal?
For example, we are shooting 50fps, so can I use less than 1/100?
Which memory card are you using?
Thanks
Hello Jonathan
My name is Mathias not Emanuel 😉
Picture profiles depend on what you are looking for and how, or if you adjust them. You might want to take a look at the blog post of my friend Philip Bloom about the GH4 too http://philipbloom.net/2014/05/12/gh4/
Increased shutter speeds can make look things better. But If the sensor readout is to slow this won’t help either. You also will get less smooth motion blur when raising the shutter speed.
Usually a shutter speed that double the frame rate is the way you want to got. So if you film in 25fps a shutter speed of 1/50 would be great. In bright daylight something hard to achive without a heavy ND Filter.
I’m using 64GB Trancend U3 cards. They are decently priced and worked great for me yet. Any card you use in a GH4 should be a fast U3 write speed card.
Planning a shoot next week with a Vulcan Mantis, a DJI ronin and the GH4. Interesting footage. Can’t wait to see how ours comes out.
Let us know how it went 🙂
Hello Mathias! I’ve seen ur latest work on vimeo and I’m blown away, good job! So I was wondering, what resolution, fps and shutter speed are you going for, whats your final setup after all these try-outs…
Best regards
Andreas in Sweden
Hello Andreas
It all depends on the current light condition and what kind of look needs to be achived.
My man i need some help i bought the s1000 and the ronin m I’m in love with my set up i balanced my ronin before, put it on my chopper i also calibrated my chopper and i flew my GH4 with a lighter lens witch is the 14mm Panasonic. I am still getting some shake in my footage, I also changed my rubber dampers to the softer version. Maybe it has something to with the camera, I flew 4K, 30 Frames and my shutter speed at 60 and i still get shaky video. Can you help me out or some advice! Thank You.
The Ronin M is far from optimal for aerial use, as it does not have any gps and it also does not receive flight data from the flight controller. So you’ll always have some horizontal drift issues.
Apart from that most s1000 got vibration issues. The first thing to check is the tube that connects both landing gears. This tube is only pused in place. In flight the landing gears are not really locked and can start to move up and down. Especialy wirh longer legs, which you use to gets ground clearance for the ronin. One option is to glue the tube with epoxy so it stiffens up the movement.
The stock lower bottom plate also does not support all arms. This can lead to vibrations due of a to soft construction. There are different compsnies offering stronger plates, which also cover all arms.
Last but not lesst you’ll need to adjust and search for the optimal gains.
The s1000 is a nice platform but stiffness wise far from perfect.
In my opinion its not good enough to use with heavier gimbals. A lot of people already fight with vibrations with a stock setup.
